Z32: Wiring diagrams for the audio system

March 18, 2012 by Greg

By: BigTDogg (MA)
Composed By: 300ZXttZMAN

Below is a detailed diagram of the wiring for the head unit and speakers on most Z32 models.

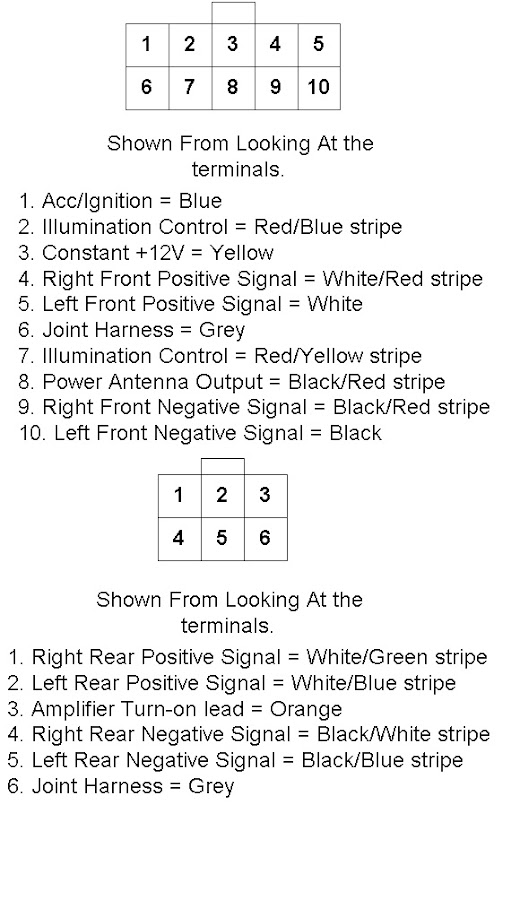

Head unit wiring diagram for 1990-94 Z32’s

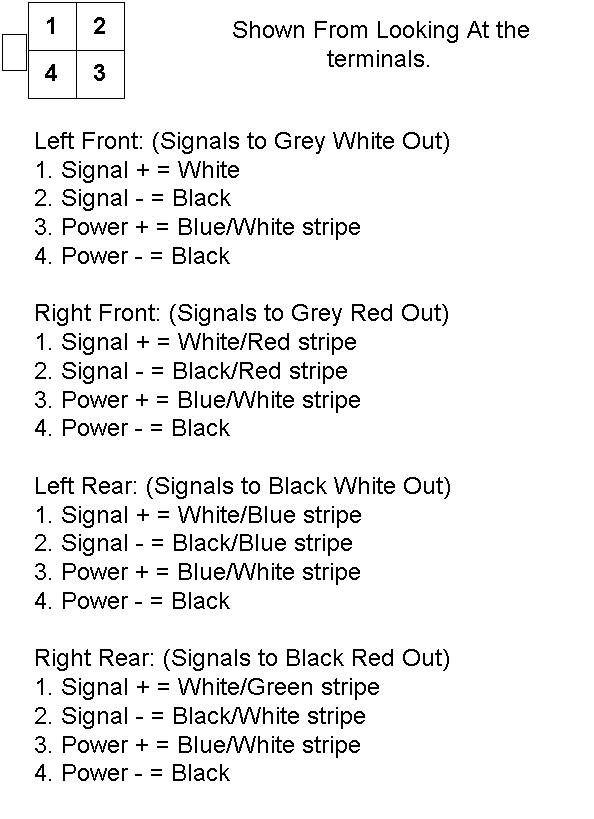

The speaker wiring diagram for Z32’s equipped with the Bose systems:

Filed Under: 300zx Articles, Wiring Diagrams Tagged With: radio, wiring
